Modular Trauma Center

Project Objective

Opritech reached QeCAD with a requirement of construction 3D Models. The objective was to create rendering models for building a Modular Trauma Center with the Medical Equipment fitted in it.

Project Summary

Scope of Work

The project comprised the following key buildings and features:

Generate 3D Models for the equipment from the Basic Floor Plan
Create virtual operation theatre views with the Medical Equipment Placement
Provide drafts and rotatable images for a Panoramic Experience

Client Inputs

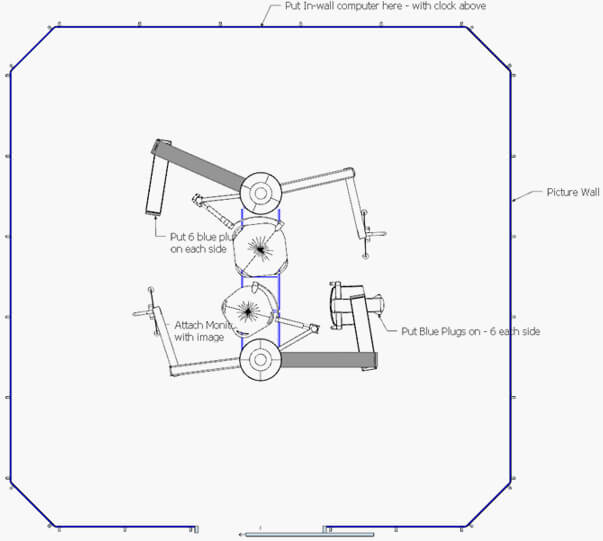

Basic floor plan for the medical equipment

Project Description

The client gave inputs in the form of a basic floor plan for the medical equipment and a few of their preferred wallpaper ideas for the modular trauma center walls.

The Set of 3D model and Render with 360-degree panoramic Delivered to the Client

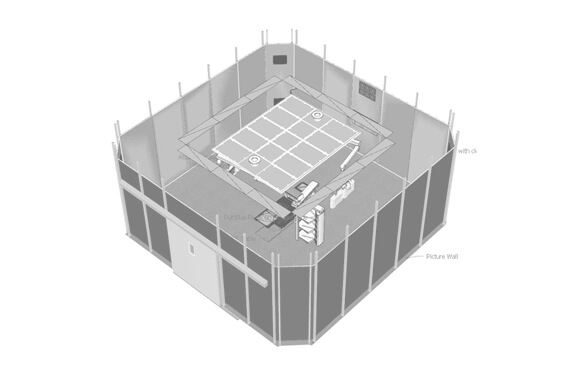

- The 3D experts created grey rendering drafts for the trauma center equipment provided. 3 different elevation views were generated to provide a clear picture from all the angles.

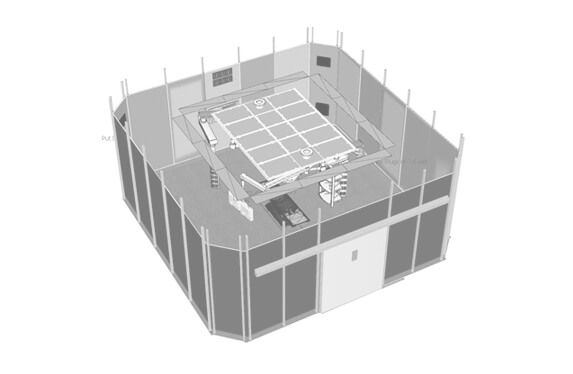

- Upon the client’s approval for the designed drafts, the 3D Sketchup Modeling work was initiated. 3D Models with front and side elevation views were then prepared.
- QeCAD team then came up with 3 variations for the trauma center with different colors & material options. Comprehensive 3D visualization models were designed to provide 360-degree panoramic images.
- Our 3D experts helped them visualize the equipment placement in the theatre with an all-round view.
- The files submitted had standard layers, attributes, and custom properties for the theatre & equipment components they were looking for.
